How Does an Ultrasonic Flow Meter Achieve Accurate Readings?

Ultrasonic flow meters give exact measurements using two main ways: the transit-time method for clear liquids and the Doppler effect for liquids with bits like dirt or bubbles. Better signal handling, multiple-path designs, and careful placement of transducers make results more accurate. Fixes for temperature and pressure shifts, plus good setup, cut down on outside problems. Chen Shuo’s Ultrasonic Flow Meter stands out with cool features like dual-channel backup, a wide range of flow rates, and live checks. These make it awesome for water systems, HVAC, and factory work. Proper setup and easy upkeep keep it working well for a long time.

What Are the Principles Behind Ultrasonic Flow Measurement?

Ultrasonic flow meters send high-frequency sound waves through a liquid. They look at how the flow changes these waves. This method doesn’t touch the liquid, so it’s super accurate and flexible. It also doesn’t cause pressure loss. Two big ideas make this work: the transit-time method and the Doppler effect.

How Does the Transit-Time Method Enable Accurate Flow Detection?

The transit-time method is based on a simple fact. Sound waves go faster when they travel with the flow than against it. Two transducers sit on opposite sides of a pipe. One sends sound waves, and the other grabs them. The meter checks the time difference between waves going with the flow and against it. This difference shows how fast the liquid moves. It works best for clean liquids with hardly any bits. It’s dependable for those cases.

Why Is the Doppler Effect Useful in Measuring Flow with Particulate Fluids?

For liquids with bubbles or bits, like wastewater or thick slurries, the Doppler effect is super helpful. An ultrasonic signal hits these bits and bounces back. The change in the signal’s pitch shows the flow speed. It’s not as exact as the transit-time method. But it’s great for cloudy liquids. It can handle tough situations well.

How Do Signal Processing Techniques Improve Resolution?

Good signal processing makes accuracy much better. It spots tiny differences in when signals arrive. Modern ultrasonic flow meters use digital tools. These tools clean out noise, make weak signals stronger, and use clever math to get clear results. Even in tricky places, this keeps data solid.

Which Factors Most Significantly Influence Ultrasonic Flow Meter Accuracy?

Even with fancy tech, outside factors can mess up results. To get top performance, you need to think about setup, liquid features, and fixes for changes.

How Do Pipe Material and Installation Conditions Affect Performance?

The pipe’s material, like steel, PVC, or copper, affects how sound waves move. A good setup stops swirling flows. You need straight pipe sections before the meter (about 10 times the pipe’s width) and after (5 times the width). This keeps the flow steady. Mistakes in mounting or sealing can let air gaps or misalignment happen. These make signals worse.

What Role Do Fluid Properties and Flow Profiles Play?

Ultrasonic flow meters need a steady flow pattern across the pipe. But things like thickness, temperature shifts, or bits in the liquid can mess this up. For example, smooth flows (called laminar) and bumpy flows (called turbulent) make different speed patterns. So, the meter must be set up to handle these differences. This keeps results accurate.

Why Are Temperature and Pressure Compensation Mechanisms Necessary?

Sound waves change speed when the liquid’s temperature or pressure shifts. Without fixing these changes, even small ones can mess up results over time. Top-notch meters have sensors that tweak calculations right away based on these conditions. This keeps everything on track.

What Design Features Enhance Measurement Precision in Ultrasonic Meters?

The meter’s design decides how well it works in different cases.

How Do Multi-Path Configurations Compare to Single-Path Designs?

Multi-path setups use several transducer pairs at different angles across the pipe. They check flow at many spots. This evens out tricky flow patterns and ignores small issues. Single-path designs are simpler. But they don’t do as well in big pipes or uneven flows. Multi-path setups are usually more accurate.

Why Is Transducer Alignment Critical to Accuracy?

Perfect alignment makes sure sound waves go the right way. If they’re off, signals get weak or show wrong times. Clamps need to hold steady without bending thin or plastic pipes. Good alignment keeps measurements right.

What Noise Reduction Techniques Are Used?

Modern ultrasonic meters use digital tools to cut noise. Tricks like Fast Fourier Transform, adaptive filtering, and phase-locked loops pull real signals away from background noise. This noise might come from shakes or electrical buzz. These methods keep data clean.

What Makes Ultrasonic Flow Meter Technology Stand Out?

Among lots of ultrasonic flow meters, Chen Shuo’s Ultrasonic Flow Meter is awesome because of its clever design. It’s built for great precision and solves many problems mentioned before.

How Does Dual-Channel Measurement Provide Redundancy?

Dual-channel systems use two separate signal paths. They double-check measurements in real time. If one path messes up or gives weird data because of bubbles or dirt, the other keeps going. This is super important for systems that need constant watching, like water or factory setups.

Why Is a Wide Turndown Ratio Beneficial for Variable Conditions?

A wide turndown ratio means one meter can handle tiny flows and big surges without losing accuracy. This saves cash on extra gear. It’s perfect for systems like HVAC or city water networks, where flow changes a lot daily. One meter does it all.

How Do Real-Time Diagnostics Improve Reliability?

Built-in checks keep an eye on the meter’s health. They watch things like transducer condition, signal strength, or temperature changes. They warn users before small issues turn into big ones. Some models even tweak themselves based on past data. This makes the meter super reliable.

Where Can You Apply Chen Shuo’s Ultrasonic Flow Meters Effectively?

These meters do great in many industries. Their tough build and smart features make them ready for hard challenges.

What Technical Specifications Define Performance Capabilities?

Models hit Class 1 accuracy standards. They measure flows from 0.03 m/s to 10 m/s, depending on the setup. They support outputs like Modbus RTU/TCP/IP and analog 4–20 mA. These hook up easily to control systems. They work with pipes from DN15 to DN1000, handling steel, PVC, HDPE, or composite materials. This makes them good for small process lines or big city water pipes.

Which Scenarios Benefit Most From These Solutions?

Water Distribution Systems Monitoring

City water systems need exact flow data for billing and spotting leaks. Meters set up without stopping water service. They give clear, high-quality data for planning water networks. This helps us use resources wisely.

HVAC System Optimization in Commercial Buildings

Balancing water flow in HVAC systems saves energy in big buildings. It’s wide turndown ratios and dual-channel backup keep things running smoothly. They help buildings stay comfy while lowering costs.

Industrial Process Control in Chemical Plants

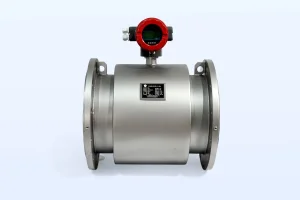

In chemical plants, exact liquid dosing is key for quality and safety. Electromagnetic flow meters handle corrosion and clean easily. But for non-conductive or risky liquids, ultrasonic meters like are better. They don’t touch the liquid and work safely in tough spots.

How Should You Implement These Devices for Best Results?

Good setup and care make sure these meters work great for years, saving time and money.

What Installation Practices Maximize Accuracy?

Keep pipes full all the time. Don’t put meters near bends or valves unless you have enough straight pipe (10D upstream, 5D downstream). If a valve is closed, put the meter upstream. For liquids with bits, use vertical mounting. This spreads bits evenly across the flow path.

What Maintenance Routines Ensure Long-Term Reliability?

Ultrasonic meters have no moving parts, so they need little care. But checking them against standards once a year spots issues early. Clean sensor surfaces with safe methods. Don’t use rough tools that could damage transducers.

How Can Data Be Integrated Into SCADA/IoT Platforms?

Most ultrasonic meters, including , use digital setups like Modbus TCP/IP. These link straight to SCADA systems over Ethernet. This makes it easy to record and check flow data. Connecting to IoT dashboards lets you predict issues using real-time trends. This moves maintenance from fixing problems to preventing them, making work smoother.

For pros looking for trusty flow monitoring, Chen Shuo’s Ultrasonic Flow Meter delivers top results. Its smart tech fits many industries, giving accurate measurements every time.

FAQ

Q1: Can an ultrasonic flow meter measure bidirectional flows?

A: Yes, transit-time ultrasonic meters can measure flows both ways. They check time differences for forward and reverse flows at the same time. This makes them really accurate.

Q2: Is recalibration needed frequently with ultrasonic flow meters?

A: No, advanced models like have self-fixing features. But checking them against standards yearly is smart, especially for important jobs.

Q3: Are these meters suitable for steam or gas applications?

A: No, standard ultrasonic liquid flow meters aren’t made for steam or gas. Special clamp-on gas versions exist, but they use different ways to work.
