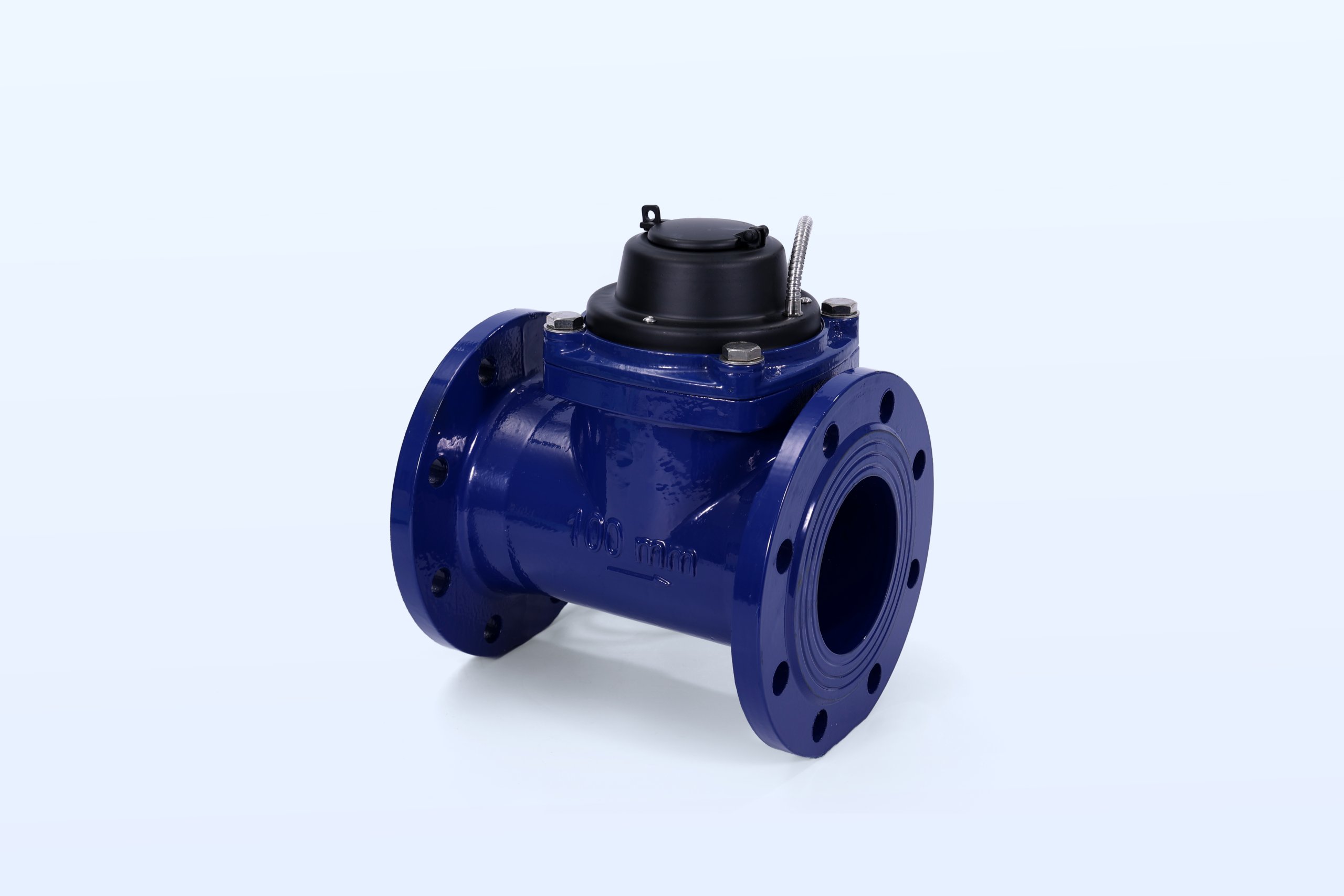

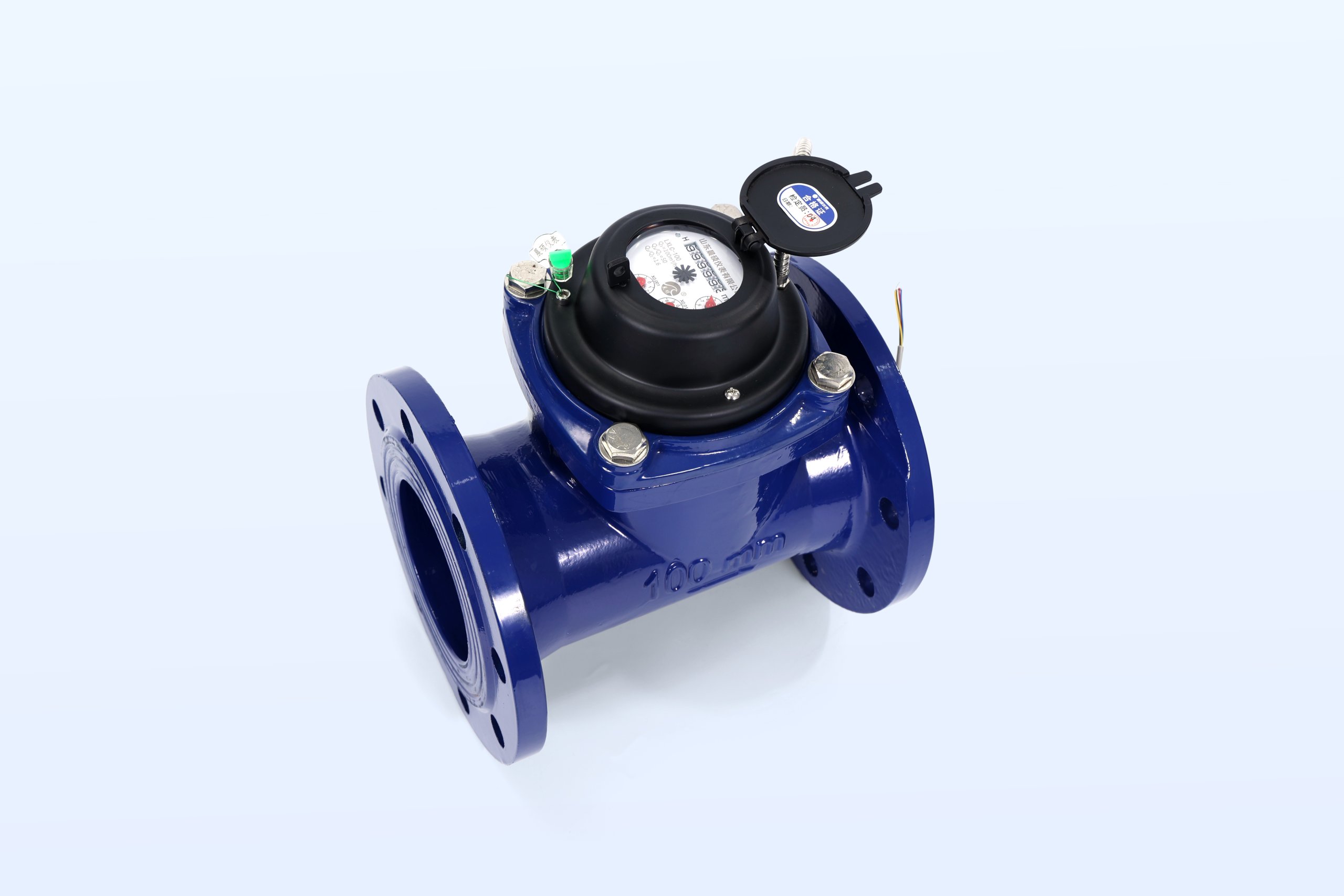

LXLC-100

+861556294599

Message Contact

ADVANTAGE

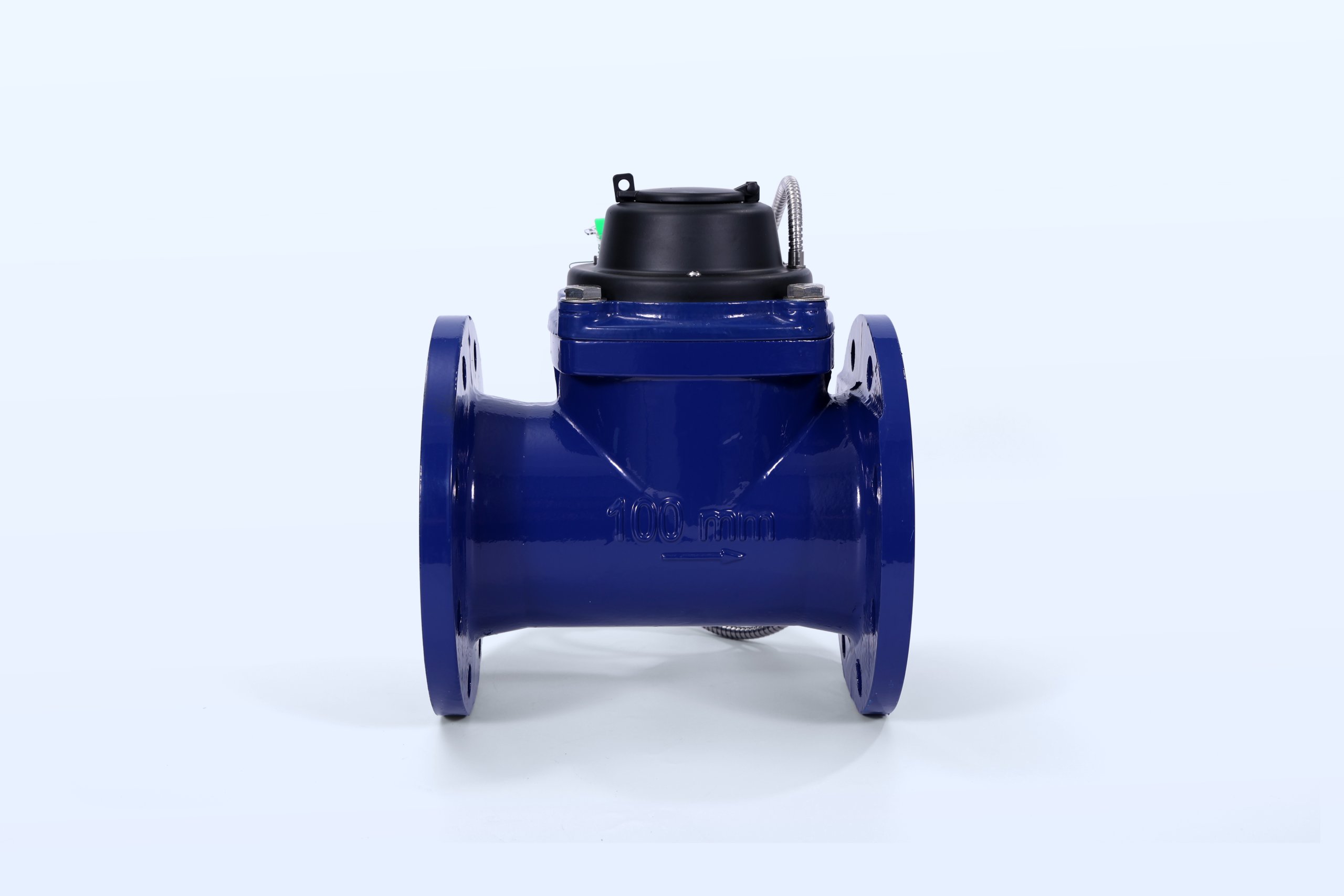

Product Structure & Features

Detachable Cartridge: Integrated helical turbine, bearings, and gear transmission mechanism for easy maintenance/replacement

Housing: Cast iron/ductile iron/stainless steel (optional) with strong corrosion resistance

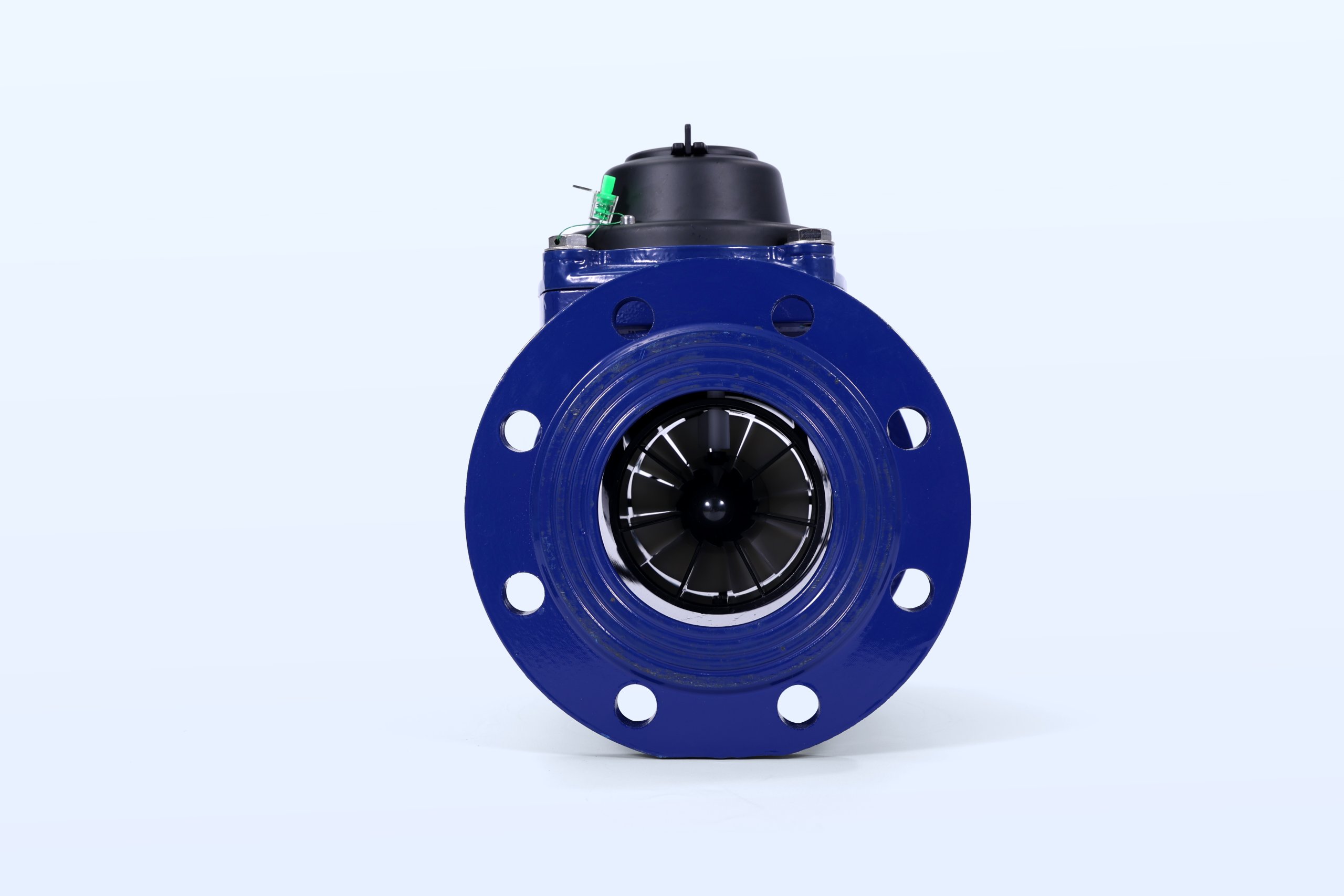

Helical Turbine: Horizontal axial-flow design ensures low resistance at high flows and stable measurement

Core Advantages

Low Pressure Loss：Horizontal helical structure minimizes flow resistance, ideal for large-diameter pipelines

High Maintainability：Removable cartridge allows partial replacement without full meter exchange, reducing maintenance costs

Wide Turndown Ratio (50:1): Accurate measurement from minimal flows (Q₁) to maximum capacity (Q₄)

Extended Lifespan: Wear-resistant bearings ensure ≥10 years service life (under normal conditions)

Typical Applications

Parameter	Value	Remarks
Nominal Diameter（DN）	100mm	Flange connection（PN16)
Permanent Flow Rate （Q₃）	100 m³/h	Maximum continuous operating flow
Transitional Flow Rate (Q₂)	3.2 m³/h	Threshold between high & low measurement zones
Minimum Flow Rate (Q₁)	2.0 m³/h	Minimum measurable flow
Overload Flow Rate (Q₄)	125 m³/h	Maximum short-term allowable flow (≤1 hour/day)
Turndown Ratio (Q₃/Q₁)	50:1	Wide range for flow fluctuations
Accuracy Class: Class 2
Error Tolerance: ±2% (high zone), ±5% (low zone)
Max. Working Pressure: 1.6 MPa Standard for cold water meters
Pressure Loss (at Q₃): ≤0.03 MPa Low-pressure-loss design
Temperature Range: – Cold Water: 0.1–30°C – Hot Water: 30–90°C (requires customization)
Body Material: Cast iron/Ductile iron/Stainless steel
Cartridge Material: Wear-resistant engineering plastic + stainless steel shaft Detachable design
